Electroluminescent Panels are thin (less than 1/2mm) laminated sheets that glow on one side.
The technology has developed a lot since it was researched in the 1950s to be used in early radar monitors.
Now, EL Panels have proved to be robust and versatile and have many uses from backlighting displays, architectural highlights, theatrical props and safety lighting

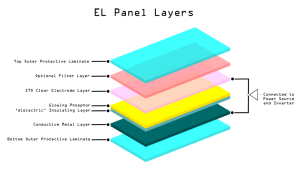

The Core of EL Panels is the glowing paint (or ‘phosphor’) that is spread onto a thin metal electrode.
A Clear Electrode similar to those used on touch screen phones is then placed on top. When an Alternating Current is passed through these two electrodes it makes the phosphor glow
The main phosphors used for electroluminescent materials naturally glow either blue or blue/green, so the base colour of all EL Panels and Tape is a bluish or blue/green colour.
To make the Panels glow white, either a pink filter is applied or pink pigment is added to the phosphor.

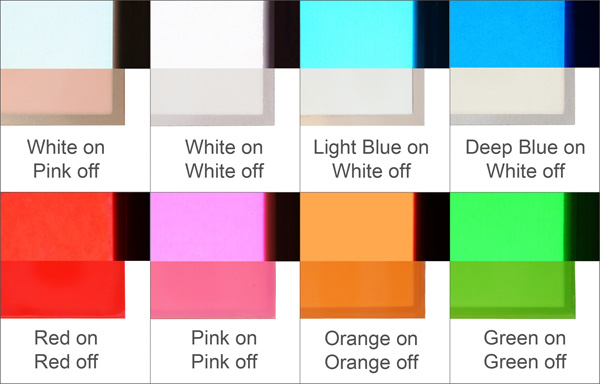

For this reason you will find: Light and Deep Blue EL Panel and Tapes are white when unlit. White EL Panels are a peachy/pink colour when unlit.* Other Coloured EL Panels (Red, Orange, Green, Pink and Yellow) are the same colour when lit and unlit.
* We now supply a new type of EL Panel that has an added white filter, so they also appear white when it is switched off. (these items have a colour option saying White On/Off)
All EL Panels
| Image | Name | Price | Buy | hf:tags |
|---|---|---|---|---|
 | 10 x 10cm | From £12.00 | ||
 | 2.4 x 4.5 cm | From £3.00 | ||
 | 2cm Hoop | From £8.00 | ||
 | A6 | From £15.00 | ||
 | 13 x 13cm | From £15.00 | ||
 | 3 x 5 cm | From £3.00 | ||
 | 3cm Button | From £3.00 | ||
 | A5 | From £20.00 | ||
| 25 x 25cm | From £40.00 | ||
 | 5 x 8 cm | From £6.00 | ||
 | 6cm Circle | From £6.00 | ||
 | A5 with 4 Connectors | From £20.00 | ||
 | 38 x 40cm | From £90.00 | ||
 | 6cm Hoop | From £4.00 | ||
 | 7 x 11 cm | From £10.00 | 70mm-x-110mm 70x110mm 7cmx-11cm 7x11 | |
 | A5 with 10 Solder Points | From £22.00 | ||
 | 10cm Circle | From £10.00 | ||
 | 15 x 40cm With 4 Connectors | From £40.00 | ||
 | 1M Square | From £300.00 | ||
 | A4 | From £40.00 | ||
 | 14cm Disc | From £12.00 | ||
 | A4 with 4 Connectors | From £40.00 | ||
 | 16cm diameter EL Panel | From £24.00 | ||
| 26cm diameter EL Panel | From £48.00 | ||
 | A3 | From £65.00 | ||
| 33cm diameter EL Panel | From £72.00 | ||
 | A2 | From £125.00 | ||
 | A1 | From £250.00 |
