4.5V USB Potted 10 – 100cm2

Input: USB

Capacity: 100cm2 EL Panels

? or 5m of EL Wire

Dimensions: 1.8 x 2.4 x 2.8cm

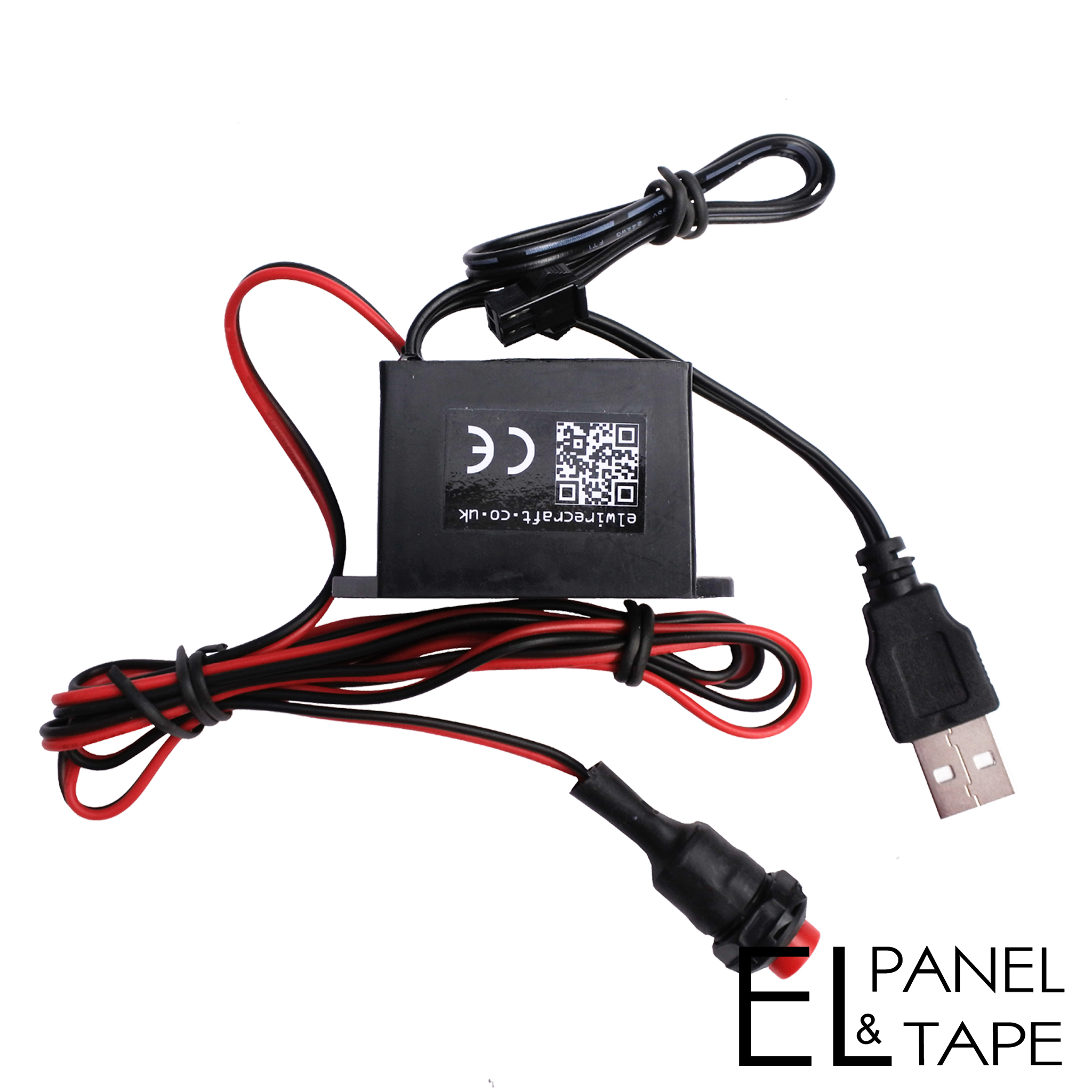

Small Potted Inverter with USB input

This EL Inverter is suitable for up to 100square cm of EL Panel or 5 metres of EL Wire
It has been potted inside epoxy resin which keeps it water resistant as well as helping keep the whistle of transformer to a minimum

There is a choice of either a plunger switch on a 1.2m long cord
or if you choose ‘No Switch’ then it will come on when you attach it to a power source

These EL Drivers can be powered by any USB Port
Or they can be powered by a rechargeable Li-ion Battery that can be recharged using a USB port

(Please be aware that the inverter should always be attached to some EL Tape/Panel or EL Wire when it has power to it, else it may overheat)
Driver with or without switch
The Inverter has USB port

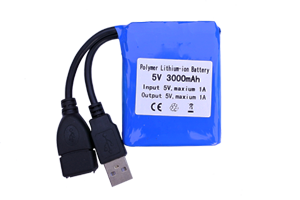

Li-ion Battery

3000mAh (thin): (6.5cm x 5.5cm x 0.8cm)

Leads are both 9.5cm long


Capacity: 3000mAh

Input power: DC 5.2V

Output: DC 4.5V – 5.2V

Over-charge / discharge protection: Yes

(*Li-ion Batteries are only available to the UK due to airmail postal restrictions)


All of these external power inputs, as well as extras such as 12v remote controllers, can be found in Additional Items
