10,000cm2 – 15,000cm2

Capacity: 10,000 to 15,000cm2

Dimensions: 25 x 4.2 x 7cm

Description

1m to 1.5m Metre EL Inverter

This is a dedicated EL Inverter so it is tweaked to perform best with EL Panel and tapes (though it can also drive EL Wire) and can light up between 1 and 1.5 Square Metres of EL Panel or Tape

These Inverters are well-built for long term use in a strong metal box with a built-in fan, and feature top range toroidal transformers which run silently.

There is an On/Off switch as well as dials allowing you to control the brightness and blink speed of the flash

It is possible to run several large EL Panels off this Inverter, for example you could run 6 x A2 EL Panels using Splitters and Extenders.



This is a powerful inverter and to protect it you must have a minimum of 1metre square EL Panel attached when switched on

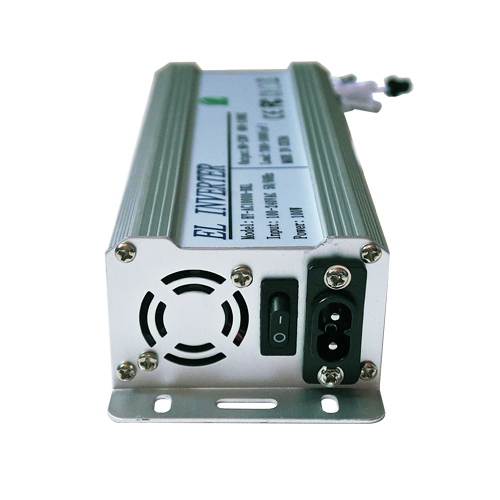

close up image of the controls on the A4 Dedicated inverter



The Inverter has direct mains input and comes with an IEC-C7 figure of 8 UK mains power lead.

image of iec-c7 figure of eight uk mains power lead
