12v Boxed 150 – 600cm2

Capacity: 150 to 600cm2

– or 10 to 40m of EL Wire

Dimensions: 3.2 x 5 x 8cm

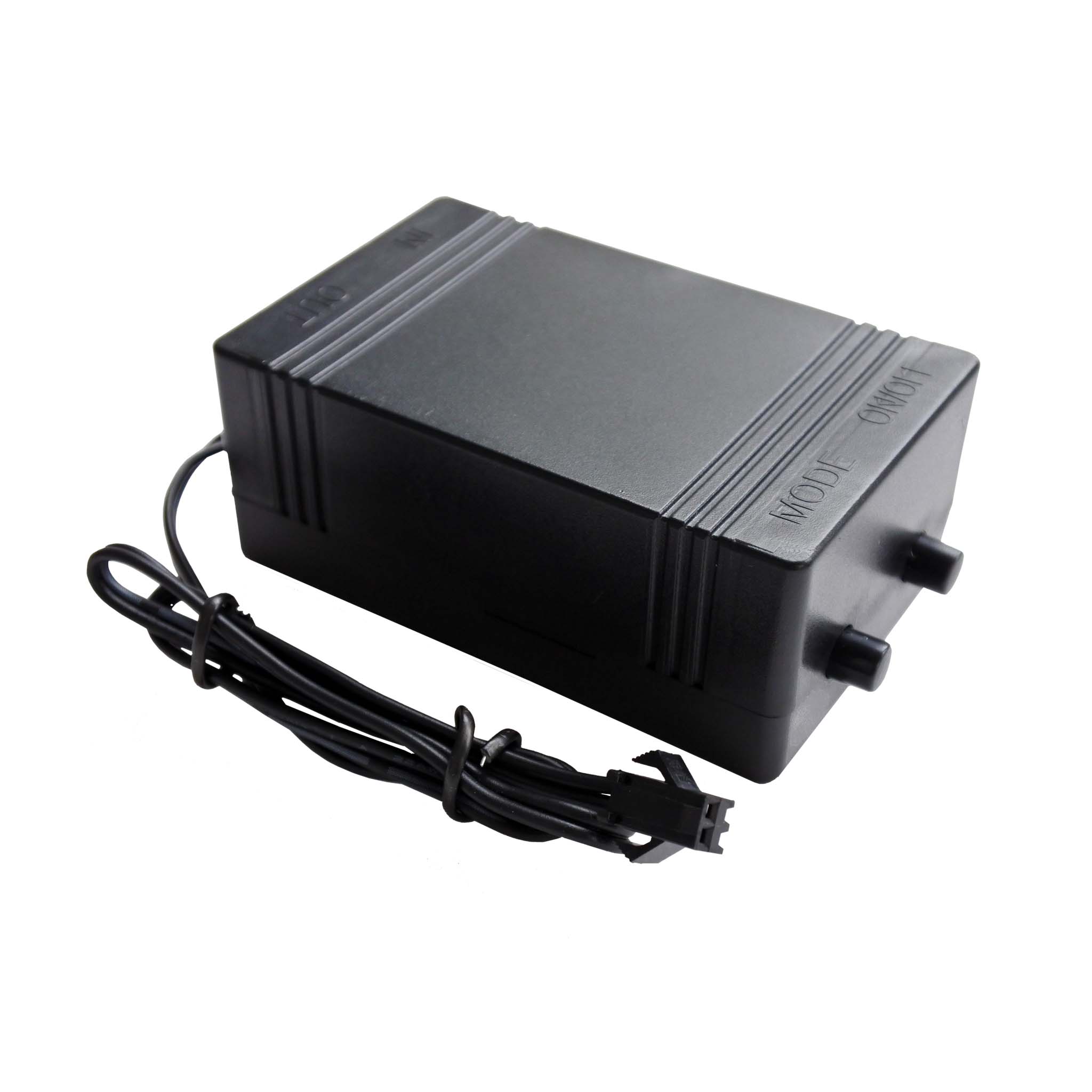

12v Boxed Inverter

This boxed EL Inverter is suitable for between 150 and 600square cm of EL Panel or 10 to 40 metres of EL Wire

It is a powerful inverter ideal for both A5 and A4 EL Panels and comes with 3 modes (on/slow flash/fast flash)

(Please be aware that the inverter should always be attached to some EL Tape/Panel or EL Wire when it has power to it, else it may overheat)

The Inverter has a 2.1/5.5mm jack plug built into it – this is a standard 12v connector

You will find these compatible Power Inputs options in the drop down selection:


Only the Inverter:

You may already have your own 12v input with a 2.1/5.5mm connector,


Crocodile Clips

crocodile clips for 12v inverter

This is usually the solution if you want to run the inverter off your own 12v battery


8xAA Battery Box

battery box for 12v inverter

To make this inverter portable then just plug in this battery box.


Please note that rechargeable AA batteries are lower voltage than standard batteries so cannot really be used effectively with this battery box

3 x 18650 Battery Box

Image showing a 3 x 18650 rechargeable battery box

These 18650 rechargeable batteries have now become popular and widely available. This Battery Box will plug straight into the driver and will make this EL Driver portable and rechargeable


Li-ion Battery

rechargeable li-ion battery for 12v el inverters

These are smaller and lighter than the Battery Box, the 3000mAh Li-ion battery gives the same life as the 8xAA Battery Box with fresh alkaline batteries

1000mAh: 81g (6.5cm x 3.7cm x 1.8cm)

1800mAh: 145g (5.6cm x 3.8cm x 3.1cm)

3000mAh: 172g (7.3cm x 5.6cm x 2.2cm)

5000mAh: 265g (6.0cm x 5.8cm x 3.9cm)

All of these Li-ion Batteries come with an intelligent recharger

(*Li-ion Batteries are only available to the UK due to airmail postal restrictions)


Mains Plug

mains plug for 12v el inverter

This will convert mains electricity to 12v so it can be used as a handy input for this inverter


Car Adaptor

Car Lighter adaptor for powering electroluminescent products in cars

This adaptor plugs into the car lighter socket. It is fused and ends with a 5.5mm/2.1mm jack plug so it can be used with any of our 12v Drivers or accessories


All of these external power inputs, as well as extras such as 12v remote controllers, can be found in Additional Items
