7,000cm2 – 10,000cm2

Capacity: 7,000 to 10,000cm2

Dimensions: 19.7 x 4.2 x 7cm

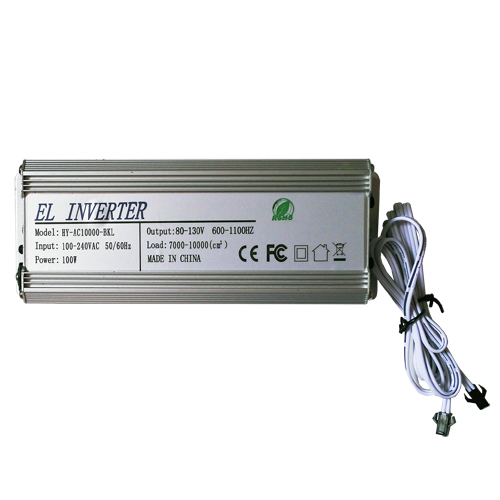

1m Square Metre EL Inverter

This is a dedicated EL Inverter so it is tweaked to perform best with EL Panel and tapes (though it can also drive EL Wire) and can light up to 1 Square Metre of EL Panel or Tape

These Inverters are well-built for long term use in a strong metal box with a built-in fan, and feature top range toroidal transformers which run silently.

There is an On/Off switch as well as a switch allowing you to choose between Constant On and Blinking with Speed and Brightness control.

It is possible to run several large EL Panels off this Inverter, for example you could run 4 x A2 EL Panels using Splitters and Extenders.


This is a powerful inverter and to protect it you must have a minimum of 7,000squ cm of EL Panel attached when switched on

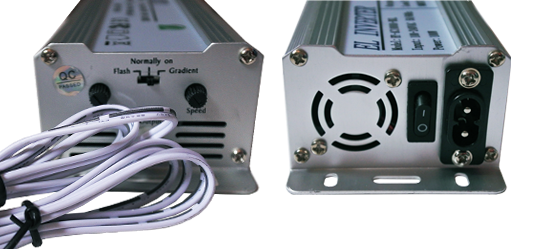

close up image of the controls on the A4 Dedicated inverter

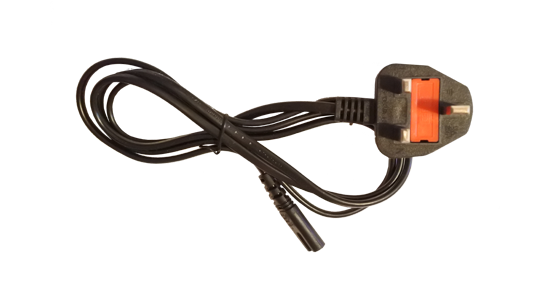

The Inverter has direct mains input and comes with an IEC-C7 figure of 8 UK mains power lead.

image of iec-c7 figure of eight uk mains power lead
