12v Boxed 50 – 300cm2
Capacity: 50 – 300cm2
– or 5 to 15m of EL Wire
Dimensions: 2.8 x 3.2 x 5cm
Description

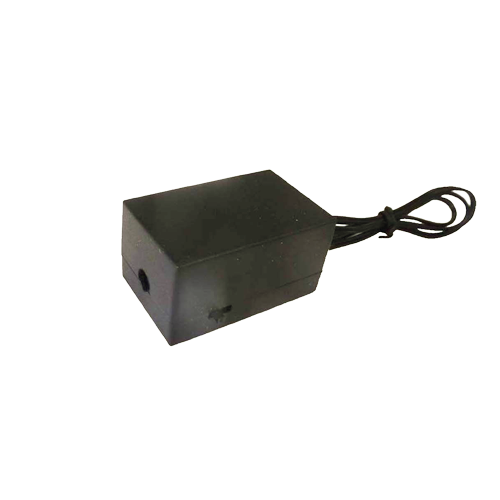

12v Boxed Inverter
This EL Inverter is suitable for between 50 and 300 square cm of EL Panel or 5 to 15 metres of EL Wire
It is boxed which means it is lighter than the epoxy filled inverters and is ideal for A6 or A5 panels or running a 2cm x 1m EL Tape
Select Features offer a choice of:
1) A switch with On – Blink – Off
2) A plunger on/off switch on a 1.2m long cord
(Please be aware that the inverter should always be attached to some EL Tape/Panel or EL Wire when it has power to it, else it may overheat)
The Inverter has a 2.1/5.5mm jack plug built into it – this is a standard 12v connector.
You will find these compatible Power Inputs options in the drop down selection:
Only the Inverter:
You may already have your own 12v input with a 2.1/5.5mm connector
This is usually the solution if you want to run the inverter off your own 12v battery
To make this inverter portable then just plug in this battery box.
Please note that rechargeable AA batteries are lower voltage than standard batteries so cannot really be used effectively with this battery box
These 18650 rechargeable batteries have now become popular and widely available. This Battery Box will plug straight into the driver and will make this EL Driver portable and rechargeable
These are smaller and lighter than the Battery Box, the 3000mAh Li-ion battery gives the same life as the 8xAA Battery Box with fresh alkaline batteries
1000mAh: 81g (6.5cm x 3.7cm x 1.8cm)
1800mAh: 145g (5.6cm x 3.8cm x 3.1cm)
3000mAh: 172g (7.3cm x 5.6cm x 2.2cm)
5000mAh: 265g (6.0cm x 5.8cm x 3.9cm)
All of these Li-ion Batteries come with an intelligent recharger
(*Li-ion Batteries are only available to the UK due to airmail postal restrictions)
This will convert mains electricity to 12v so it can be used as a handy input for this inverter
This adaptor plugs into the car lighter socket. It is fused and ends with a 5.5mm/2.1mm jack plug so it can be used with any of our 12v Drivers or accessories
All of these external power inputs, as well as extras such as 12v remote controllers, can be found in Additional Items
