A5 50cm2 – 300cm2 – 12v

Description

Dedicated A5 EL Inverter

This is a dedicated EL Inverter so it is tweaked to perform best with EL Panel and tapes (though it can also drive EL Wire).

These Inverters are well-built for long term use in a strong box with good airflow, and feature top range toroidal transformers which run silently.



This is a powerful inverter and to protect it you must have a minimum of 50squ cm of EL Panel attached when switched on.

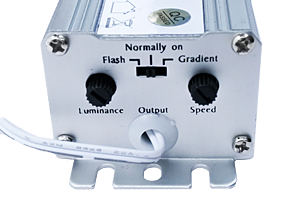

The Inverter comes with a 2.1/5.5mm jack plug built in (this is a standard 12v connector) and has flash speed and brightness control.

You will find the following compatible Power Inputs in the drop down menu:

Only Inverter

You may already have your own 12v input with a 2.1/5.5mm connector.



Crocodile Clips

This is usually the solution if you want to run the inverter off your own 12v battery.



8xAA Battery Box

To make this inverter portable then just plug in this battery box.

Please note that rechargeable AA batteries are lower voltage than standard batteries so cannot really be used effectively with this battery box.



Li-ion Battery

These are smaller and lighter than the Battery Box, the 3000mAh Li-ion battery gives the same life as the 8xAA Battery Box with fresh alkaline batteries.

1000mAh: 81g (6.5cm x 3.7cm x 1.8cm)

1800mAh: 145g (5.6cm x 3.8cm x 3.1cm)

3000mAh: 172g (7.3 x 5.6 x 2.2cm).

5000mAh: 265g (6.0 x 5.8 x 3.9cm).

All of these Li-ion Batteries come with a 1A intelligent charger.

(*Li-ion Batteries are only available to the UK due to airmail postal restrictions)



Mains Plug

This will convert mains electricity to 12v so it can be used as a handy input for this inverter.



All of these external power inputs, as well as extras such as 12v remote controllers, can be found in Additional Items
