12v Potted 50 – 300cm2

Capacity: 50 to 300cm2 EL Panels

– or 5 to 15m of EL Wire


Dimensions: 4 x 3.2 x 4cm

Description

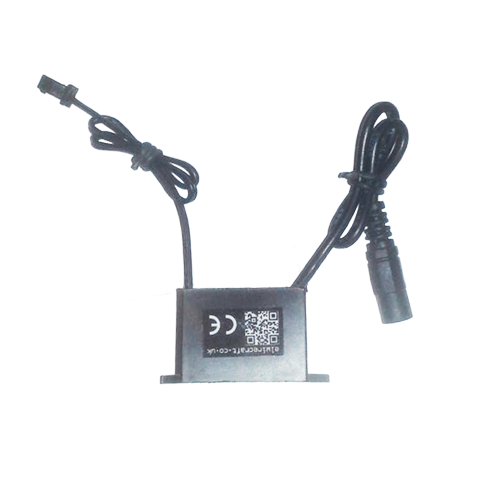

12v Potted Inverter

This EL Inverter is suitable for between 50 and 100square cm of EL Panel or 5 to 15 metres of EL Wire
It has been potted inside epoxy resin which keeps it water resistant as well as helping keep the whistle of transformer to a minimum

There is a choice of either a plunger switch on a 1.2m long cord, or if you choose ‘No Switch’ then it will come on when you attach it to a power source

(Please be aware that the inverter should always be attached to some EL Tapes/Panels or EL Wire when it has power to it, or it may overheat)
Driver with or without switch
The Inverter has 2.1/5.5mm jack plug – this is a standard 12v connector.

You will find these compatible Power Inputs options in the drop down selection:

Only the Inverter:

12v inverter for 50 to 300 square cm of el tape

You may already have your own 12v input with a 2.1/5.5mm connector,

or you may choose to snip off the connector and wire it directly into a 12v source

12v Crocodile Clips

crocodile clips for 12v inverter

This is usually the solution if you want to run the inverter off your own 12v battery

8xAA Battery Box

battery box for 12v inverterTo make this inverter portable then just plug in this battery box.

Please note that rechargeable AA batteries are lower voltage than standard batteries so cannot really be used effectively with this battery box.

3 x 18650 Battery Box

These 18650 rechargeable batteries have now become popular and widely available. This Battery Box will plug straight into the driver and will make this EL Driver portable and rechargeable



Li-ion Battery

rechargeable li-ion battery for 12v el inverters

These are smaller and lighter than the Battery Box, the 3000mAh Li-ion battery gives the same life as the 8xAA Battery Box with fresh alkaline batteries

1000mAh: 81g (6.5cm x 3.7cm x 1.8cm)

1800mAh: 145g (5.6cm x 3.8cm x 3.1cm)

3000mAh: 172g (7.3cm x 5.6cm x 2.2cm)

5000mAh: 265g (6.0cm x 5.8cm x 3.9cm)

All of these Li-ion Batteries come with an intelligent recharger

(*Li-ion Batteries are only available to the UK due to airmail postal restrictions)



Mains Plug

mains plug for 12v el inverter

This will convert mains electricity to 12v so it can be used as a handy input for this inverter



Car Adaptor

Car Lighter adaptor for powering electroluminescent products in cars

This adaptor plugs into the car lighter socket. It is fused and ends with a 5.5mm/2.1mm jack plug so it can be used with any of our 12v Drivers or accessories



All of these external power inputs, as well as extras such as 12v remote controllers, can be found in Additional Items
