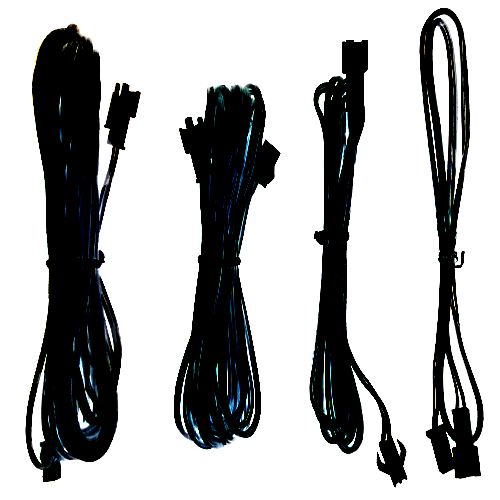

Available in 50cm, 1.2m, 3m, 5m and 15m lengths in Black or Clear/White
Visit our sister site elwirecraft for an extensive range of EL products for your craft projects.
Our range of mini splitters are available in 2-way to 6-way, coloured in black or white/clear.
Visit our sister site elwirecraft for an extensive range of EL products for your craft projects.
We offer a range of speciality splitters in 2 and 3-way of varying lengths & combinations
Visit our sister site elwirecraft for an extensive range of EL products for your craft projects.
This in-line dimmer controller is not an inverter / driver itself
It sits between the power output and a 12v inverter, giving you complete control over the brightness of your EL Panels, Tapes or Wires
This In-line dimmer controller comes ready to plug in with 5.5mm/2.1mm jack plug and can be used with any of our power supplies below:
Perfect if you already have your own 12V battery to run a driver
This 8xAA Battery Box will plug straight into the driver. It is fairly large (132mm x 73mm x 20mm) but will make an EL Driver portable
3) 3 x 18650 Rechargeable Battery Box
This 3 x 18650 Rechargeable Battery Box will plug straight into the driver. It is fairly large (76mm x 60mm x 20mm) and the leads for the output are 15cm long but will make an EL Driver portable.
4) Rechargeable Li-ion Battery
Much smaller and lighter than the Battery Box, these powerful Li-ion batteries come in a range of sizes
1800mAh (square): 125g (5cm x 3.3cm x 2.7cm)
3000mAh: 172g (7.3cm x 5.6cm x 2.2cm)
5000mAh: 250g (5.3cm x 5.8cm x 3.9cm)
All of these Li-ion Batteries come with an intelligent recharger
(Li-ion Batteries are only available to the UK due to airmail postal restrictions)
This adaptor plugs into the car lighter socket. It is fused and ends with a 5.5mm/2.1mm jack plug so it can be used with any of our Drivers or Additional Items
Most people also use Splitters that come from the Driver to the EL Wire (so you only need 1 x Driver for many EL Panels or Wires) - you can get those types of EL SPLITTERS HERE
*If you want more than one of the power connectors, mentioned above, for your EL Driver they can all be found in our Additional Items section, or just click the description you want and be taken to its own page*
Visit our sister site elwirecraft for an extensive range of EL products for your craft projects.
This is a 12V RF (Radio Frequency) Remote Control unit.
It operates from up to 25 metres away and the handheld remote does not need line of sight with the Switch Box to switch it on or off.
The Switch Box is programmable, so it is possible for one 12V RF Remote Control unit to control one or several of these Switch Boxes:
1) Unscrew the top of the Switch Box
2) Hold down the red button inside while pressing the button on the Remote.
3) This will add this frequency to the Switch Box (maximum 10)
The Input of the Switch Box is a 12V 5.5mm Socket
The Output is a 12V 2.5mm Jack Plug and will allow this 12V Rf remote control unit to plug into any of the devices below.
This is usually the solution if you want to run the inverter off your own 12v battery
To make this inverter portable then just plug in this battery box.
Please note that rechargeable AA batteries are lower voltage than standard batteries so cannot really be used effectively with this battery box
These 18650 rechargeable batteries have now become popular and widely available. This Battery Box will plug straight into the driver and will make this EL Driver portable and rechargeable
These are smaller and lighter than the Battery Box, the 3000mAh Li-ion battery gives the same life as the 8xAA Battery Box with fresh alkaline batteries
1800mAh (thin): 125g (10cm x 5.5cm x 0.8cm)
3000mAh: 172g (7.3cm x 5.6cm x 2.2cm)
5000mAh: 250g (5.3cm x 5.8cm x 3.9cm)
All of these Li-ion Batteries come with an intelligent recharger
This will convert mains electricity to 12v so it can be used as a handy input for this inverter
You can plug this adapter into a car's Cigarette Lighter
All of these external power inputs can be found in Additional Items
Visit our sister site elwirecraft for an extensive range of EL products for your craft projects.
This adjustable in-line motion sensor sits between the power output and a 12v driver enabling you to control your LED's, EL Panels, Tapes or Wires with movement.
This adjustable motion sensor comes ready to plug in with 5.5mm/2.1mm jack plug
Has two 50cm long leads
Adjustable delay of 30 seconds to 10 minutes.
110-degree angle PIR (Passive Infra Red) sensor
input/output 12v to 24v
and will plug into any of the devices below
This is usually the solution if you want to run the inverter off your own 12v battery
To make this inverter portable then just plug in this battery box.
Please note that rechargeable AA batteries are lower voltage than standard batteries so cannot really be used effectively with this battery box
These 18650 rechargeable batteries have now become popular and widely available. This Battery Box will plug straight into the driver and will make this EL Driver portable and rechargeable
These are smaller and lighter than the Battery Box, the 3000mAh Li-ion battery gives the same life as the 8xAA Battery Box with fresh alkaline batteries
1800mAh (thin): 125g (10cm x 5.5cm x 0.8cm)
3000mAh: 172g (7.3cm x 5.6cm x 2.2cm)
5000mAh: 250g (5.3cm x 5.8cm x 3.9cm)
All of these Li-ion Batteries come with an intelligent recharger
This will convert mains electricity to 12v so it can be used as a handy input for this inverter
You can plug this adapter into a car's cigarette lighter
All of these external power inputs can be found in Additional Items
Visit our sister site elwirecraft for an extensive range of EL products for your craft projects.
This 12V enclosed battery box is designed to be used with the 12v input on many of our EL Inverters. It comes with a 2.1mm/5.5mm jack for easy connection.
The lead on this battery box is 19cm long.
It really should be used with 8 x AA standard alkaline batteries and not rechargeable batteries since rechargeable AA batteries are a lower voltage and 8 of them would only reach 9V instead of the 12V reached by standard alkaline batteries.
We have an extensive selection of 12V external power inputs in our Additional Items
Visit our sister site elwirecraft for an extensive range of EL products for your craft projects.
This handy battery box takes 3 x 18650 batteries and gives an output of just under 12V and comes with a 20cm lead.
*Please note this is just a battery box IT IS NOT AN EL DRIVER/INVERTER - and you will NOT NEED this item if you buy one of our EL Drivers or EL Sequencers - it will come with one supplied*
The batteries are the long round flat ended rechargeable 'INR or IMR' Batteries, which have become popular and widely available for use in vaping rigs.
We have made this box to power the 12v EL Drivers and Sequencers,
The 18650 batteries are 3.7v each, so the power input from this Box with 3 is a total of 11.1V
We have found this barely makes a difference when powering EL Drivers compared to the convenience of these rechargeable batteries.
Visit our sister site elwirecraft for an extensive range of EL products for your craft projects.
These clips can be used with the 12v input on many of our EL Inverters. They offer an excellent alternative if you want to power your electroluminescent driver with your own 12V power supply.
Visit our sister site elwirecraft for an extensive range of EL products for your craft projects.
This 12v switch has a 2.1mm plug on one end and a 5.5mm plug on the other end
This switch enables you to add an on/off control for your 12V power source
This adapter plugs into the car lighter socket, which will then power many of our EL Inverters.
It is fused and ends with a 5.5mm/2.1mm jack plug
Visit our sister site elwirecraft for an extensive range of EL products for your craft projects.
These connectors for electroluminescent panels are generally universal, these are 'male' connectors that can be soldered onto the solder points.
With this connector, the EL panels with solder points will plug into an EL Driver or splitter
Visit our sister site elwirecraft for an extensive range of EL products for your craft projects.
This is a 1metre extender that has a 2.1mm plug on one end and a 5.5mm plug on the end
This is very useful to bridge the gap between a 12v power source and the device
It can be used with any of our 12v Inverters or accessories
Flexible Printed Cable for use with EL panels, tapes, and dolls houses
2mm x 2 copper strips on 0.5cm wide tape and 28cm long
3mm x 2 copper strips 1cm wide tape and 28cm long
We supply our FFC tape in 5 lengths which can be cut down to your required size
