EL Panel

el panel sheet

Electroluminescent Panels are thin (less than 1/2mm) laminated sheets that glow on one side.

The technology has developed a lot since it was researched in the 1950s to be used in early radar monitors.

Now, EL Panels have proved to be robust and versatile and have many uses from backlighting displays, architectural highlights, theatrical props and safety lighting

layers-of-el-panel-explained-450x800

The Core of EL Panels is the glowing paint (or ‘phosphor’) that is spread onto a thin metal electrode.

A Clear Electrode similar to those used on touch screen phones is then placed on top. When an Alternating Current is passed through these two electrodes it makes the phosphor glow

The main phosphors used for electroluminescent materials naturally glow either blue or blue/green, so the base colour of all EL Panels and Tape is a bluish or blue/green colour.

To make the Panels glow white, either a pink filter is applied or pink pigment is added to the phosphor.

el panel making machine

el panels lit

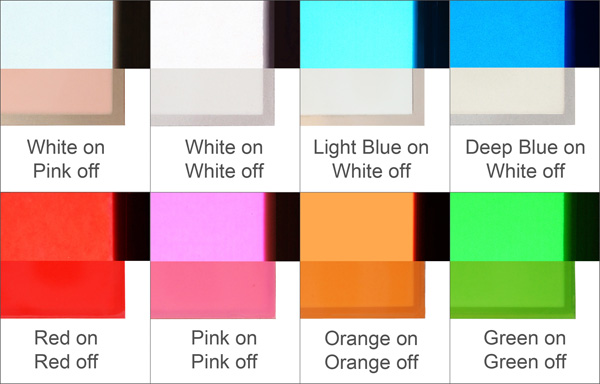

For this reason you will find:
Light and Deep Blue EL Panel and Tapes are white when unlit.
White EL Panels are a peachy/pink colour when unlit.*
Other Coloured EL Panels (Red, Orange, Green, Pink and Yellow) are the same colour when lit and unlit.

* We now supply a new type of EL Panel that has an added white filter so they also appear white when it is switched off.
(these items have a colour option saying White On/Off)

Rectangle EL Panels

Name
Colour
Backing
Inverter
Price
el panel 24x45mm glowing in white and light blue, electroluminescent panel

2.4 x 4.5 cm




£3.00
El Panel 30 x 50 cm glowing shape

3 x 5 cm




£3.00
EL Panel 50x80mm glowing foil shape in 7 colours

5 x 8 cm




£6.00
EL Panel 70x110mm glowing foil shape

7 x 11 cm




£10.00
EL Panel 168x36mm

4 x 17cm




£10.00
EL Panel 3.5cm x 32cm Glowing electroluminescent panel

3.5cm x 32cm




£16.00
EL Panel 450x80mm

9 x 46 cm




£30.00
EL Panel 650x89mm white

9 x 66 cm With 4 Connectors




£40.00
EL Panel 15x40cm glowing foil shape

15 x 40cm With 4 Connectors




£40.00

Square EL Panels

Name
Colour
Backing
Inverter
Price
El-panel-13-x-13cm-small-white

25 x 25cm




£40.00
El-panel-13-x-13cm-small-white

13 x 13cm




£15.00
A3-EL-Panel1

38 x 40cm




£90.00
El-panel-1-metre-square-lightbox-white-flex

1M Square



£300.00

‘A’ Size EL Panels

Name
Colour
Backing
Inverter
Price

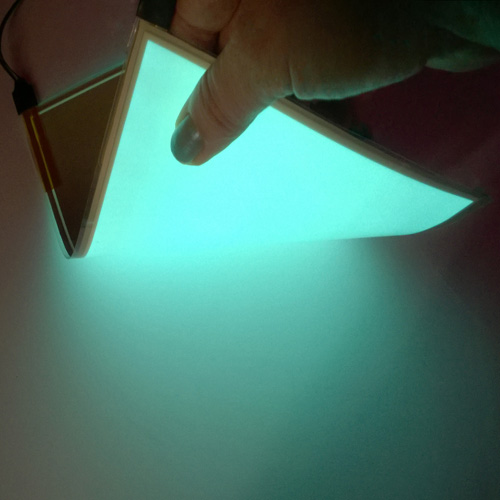

A6 EL Panel1

A6




£15.00
A5 EL Panel1

A5




£20.00

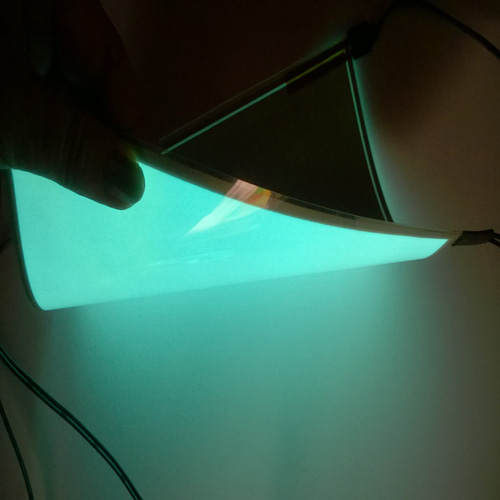

A5-with-4-Connectors

A5 with 4 Connectors




£20.00

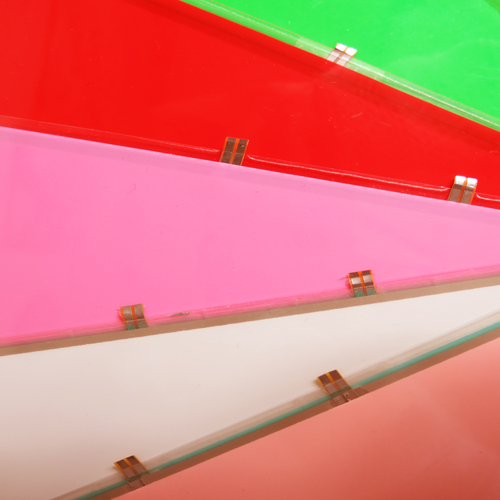

el panel a5 with 10 solder tabs

A5 with 10 Solder Points




£22.00
A4 EL Panel Square2

A4




£40.00
4-Connector-EL-Panel

A4 with 4 Connectors




£40.00
A3 Electrolumesecent Panel from EL Panel And Tape, Glowing Foil, EL Sheet,

A3




£65.00
A3 EL Panel Square

A2



£125.00
Arty8-square

A1



£250.00

Round EL Panels

Name
Colour
Backing
Inverter
Price
3cm round EL Panel glowing disk

3cm Button




£2.50
EL Panel 6cm glowing disc, disk, shape

6cm Circle




£6.00
3cm el hoop in 8 colours - electrolumescent panel, shape, circle

6cm Hoop




£3.50
EL Panel 10cm Circle, glowing disk

10cm Circle




£10.00
EL Panel dual ring disk in 3 colours

14cm Disk




£11.99
